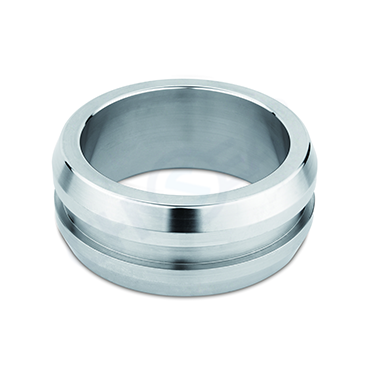

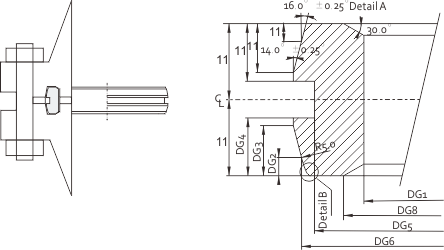

IX Series02

WEIGHTS

DN	NPS	IXsize	Dg1mm	DG2mm	DG3mm	DG4mm	DG5mm	DG6mm	DG7mm	DG8mm	HG1mm	HG2mm	HG3mm	HG4mm	HG5mm	RG1mm	Weight kg
15	1／2	IX15	22.2	27.91	28.46	28.66	27.47	29.14	30.19	24.7	0.35	1.20	3.30	3.8	10.00	0.5	0.02
20	3／4	IX20	27.2	32.93	33.47	33.67	32.48	34.16	35.20	29.7	0.35	1.20	3.30	3.8	10.00	0.5	0.03
25	1	IX25	34.2	39.95	40.49	40.69	39.50	41.18	42.22	36.7	0.35	1.20	3.30	3.8	10.00	0.5	0.03
40	1 1／2	IX40	49.3	55.84	56.38	56.58	55.34	57.11	58.21	51.9	0.35	1.27	3.48	4.0	10.56	0.5	0.05
50	2	IX50	61.3	68.43	69.08	69.32	67.92	69.89	71.13	64.4	0.42	1.41	3.89	4.5	11.78	0.6	0.08
65	2 1／2	IX65	74.4	82.14	82.79	83.03	81.52	83.69	85.05	77.8	0.42	1.56	4.28	4.9	12.98	0.6	0.12
80	3	IX80	89.5	97.74	98.49	98.77	97.09	99.47	100.96	93.3	0.49	1.71	4.70	5.4	14.24	0.7	0.17
100	4	IX100	115.7	125.17	126.04	126.36	124.44	127.15	128.85	120.1	0.56	1.94	5.34	6.2	16.19	0.8	0.28
125	5	IX125	142.0	152.66	153.64	154.00	151.87	154.87	156.75	146.7	0.63	2.15	5.92	6.8	17.94	0.9	0.42
150	6	IX150	170.2	182.17	183.25	183.66	181.32	184.61	186.66	175.4	0.70	2.36	6.48	7.5	19.64	1.0	0.62
200	8	IX200	220.5	233.46	234.66	235.10	232.45	236.19	238.54	226.5	0.77	2.68	7.38	8.5	22.36	1.1	0.99
250	10	IX250	274.9	292.64	294.05	294.57	291.57	295.78	298.42	281.7	0.91	3.02	8.31	9.6	25.20	1.3	1.85
300	12	IX300	325.0	341.13	342.65	343.21	339.97	344.52	347.36	332.5	0.98	3.26	8.96	10.4	27.15	1.4	2.18
350	14	IX350	357.1	373.87	375.38	375.94	372.58	377.34	380.32	365.0	0.98	3.42	9.39	11.0	28.46	1.4	2.60
400	16	IX400	409.3	427.36	428.98	429.58	425.98	431.08	434.27	417.9	1.05	3.66	10.05	11.9	30.47	1.5	3.43
450	18	IX450	459.4	478.90	480.63	481.27	477.45	482.85	486.23	468.6	1.12	3.87	10.65	12.7	32.28	1.6	4.38
500	20	IX500	511.6	531.45	533.29	533.97	529.93	535.63	539.20	521.4	1.19	4.09	11.24	13.5	34.06	1.7	5.27
550	22	IX550	561.7	583.04	584.99	585.71	581.62	587.44	591.18	572.1	1.26	4.28	11.78	14.3	35.69	1.8	6.48
600	24	IX600	611.9	633.64	635.70	636.46	632.40	638.26	642.16	622.8	1.33	4.47	12.29	15.0	37.25	1.9	7.55
650	26	IX650	664.0	686.37	688.42	689.18	685.19	691.09	695.16	675.5	1.33	4.66	12.81	15.7	38.81	1.9	8.74
700	28	IX700	714.1	738.01	740.17	740.97	737.01	742.94	747.16	726.1	1.40	4.83	13.28	16.3	40.25	2.0	10.4
750	30	IX750	766.3	790.65	792.92	793.77	789.83	795.79	800.16	778.8	1.47	5.00	13.76	17.0	41.69	2.1	11.8
800	32	IX800	816.4	841.32	843.70	844.58	840.67	846.66	851.16	829.4	1.54	5.16	14.20	17.6	43.03	2.2	13.3
850	34	IX850	866.6	892.10	894.48	895.36	891.52	897.53	902.18	879.9	1.54	5.32	14.63	18.2	44.34	2.2	14.8
900	36	IX900	918.7	945.78	948.27	949.19	945.38	951.41	956.19	932.6	1.61	5.48	15.06	18.8	45.65	2.3	17.1
950	38	IX950	968.8	996.59	999.08	1000.00	996.26	1002.30	1007.21	983.1	1.61	5.63	15.47	19.3	46.88	2.3	18.9
1000	40	IX1000	1021.0	1049.28	1051.88	1052.85	1049.13	1055.19	1060.23	1035.7	1.68	5.77	15.88	19.9	48.12	2.4	20.9
1050	42	IX1050	1071.1	1100.00	1102.70	1103.71	1100.02	1106.10	1111.26	1086.2	1.75	5.92	16.27	20.4	49.29	2.5	23.0
1100	44	IX1100	1121.3	1150.83	1153.53	1154.54	1150.92	1157.00	1162.28	1136.8	1.75	6.05	16.64	21.0	50.43	2.5	25.1
1150	46	IX1150	1173.4	1203.55	1206.36	1207.40	1203.82	1209.91	1251.31	1189.3	1.82	6.19	17.03	21.5	51.59	2.6	27.5
1200	48	IX1200	1223.6	1254.39	1257.20	1257.25	1254.73	1260.83	1266.35	1239.8	1.82	6.32	17.39	22.0	52.68	2.6	29.9
