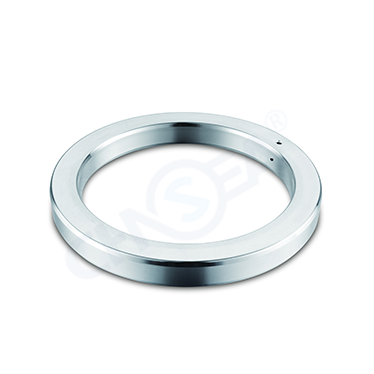

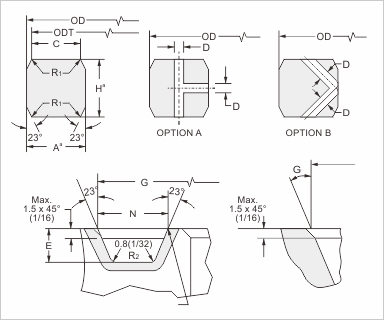

TOLERANCES:(mm)
| OD +0.5,-0.0 | E +0.8,-0.0 |
| ODT C +0.15,-0.0 | G 23°±0°15′ |
| R1 +0.5 | N +0.2 |
| Ha +0.2,-0.0 | R2 Max |
| Aa +0.2,-0.0 | D +0.0,-0.8 |
NOTE 1:
Radius R shall be 8 % to 12 % of the gasket height, H
NOTE 2:
Two pressure passage holes in the SBX ring cross-section prevent pressure lock when connections are made up underwater. Two options are provided for drilling the pressure passage holes. a A plus tolerance of 0,2 mm (0,008 in) for width A and height H is permitted, provided the variation in width or height of any ring does not exceed 0,1 mm (0,004 in) along its entire circumference.
| RINGNO. | SIZE | |
| mm | (in) | |
| SBX149 | 19 | 3/4 |
| SBX150 | 25 | 1 |
| SBX151 | 46 | 1 11/16 |
| SBX152 | 52 | 2 1/16 |
| SBX153 | 65 | 2 9/16 |
| SBX154 | 78 | 3 1/16 |
| SBX155 | 103 | 4 1/16 |
| SBX156 | 179 | 7 1/16 |
| SBX157 | 228 | 9 |
| SBX158 | 279 | 11 |
| SBX159 | 346 | 13 5/8 |
| SBX160 | 346 | 13 5/8 |
| SBX161 | 422 | 16 5/8 |
| SBX162 | 422 | 16 5/8 |
| SBX163 | 476 | 18 3/4 |
| SBX164 | 476 | 183/4 |
| SBX165 | 540 | 21 1/4 |
| SBX166 | 540 | 21 1/4 |
| SBX169 | 131.18 | 5 1/8 |
